Part Number Ordering Information, example and explanation:   M8340101H1002JA where,

M83401	01	H	1002	J	A
Associated Specification Number (Conforming to MIL-PRF-83401)	Detailed Specification Sheet Number (Slash Sheet)	Characteristic	Resistance Value (Ohms)	Resistance Tolerance	Schematic

  Part number ordering options are developed using the following criteria:

Style	Detail Specification	Description
RZ010	MIL-PRF-83401/1	14 Pin Dual In-Line Package (DIP)
RZ020	MIL-PRF-83401/2	16 Pin Dual In-Line Package (DIP)
RZ030	MIL-PRF-83401/3	14 Pin Flat Pack
RZ070	MIL-PRF-83401/7	6 Pin Single In-Line Package (SIP)
RZ080	MIL-PRF-83401/8	8 Pin Single In-Line Package (SIP)
RZ090	MIL-PRF-83401/9	10 Pin Single In-Line Package (SIP)



Characteristic	Resistance Temperature Characteristic  (Referenced to +25°C)
Y	±5 parts per million/°C
C	±50 parts per million/°C
V	±50 parts per million/°C
H	±50 parts per million/°C
K	±100 parts per million/°C
M	±300 parts per million/°C
R	±25 parts per million/°C



Resistance Tolerance		Schematic
V = ±0.005%		A (Click Here for Diagram)
T = ±0.01%		B (Click Here for Diagram)

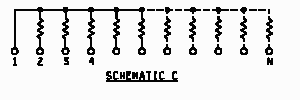

A = ±0.05%		C (Click Here for Diagram)

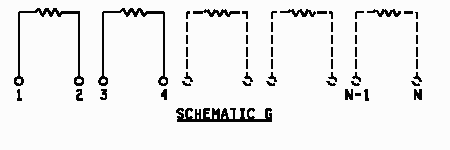

B = ±0.1%		G (Click Here for Diagram)
D = ±0.5%
F = ±1.0%
G = ±2.0%
J = ±5.0%

Resistance Values:
Resistance values in ohms are identified by four characters. The first three digits represent significant figures and the last digit specifies the number of zeroes to follow. For example 1001 indicates 1,000 ohms and 1002 indicates 10,000 ohms. For values less than or equal to 100 ohms the letter "R" is used to indicate a decimal point. For example 10R0 indicates 10.0 ohms..
