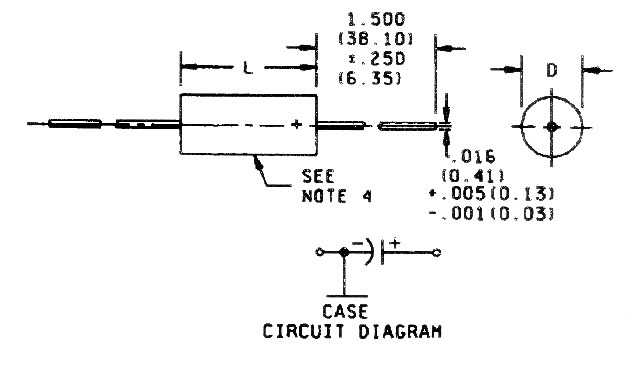

Style CSR09
Dimensions
Style CSR09
Dimensions
|
|
|
|||||
| Case Size | Min | Nom | Max | Min | Nom | Max |
| A1 | 0.235 (5.97) | 0.250 (6.35) | 0.281 (7.14) | 0.081 (2.06) | 0.090 (2.29) | 0.099 (2.51) |
| B1 | 0.375 (9.52) | 0.390 (9.91) | 0.405 (10.29) | 0.128 (3.25) | 0.138 (3.51) | 0.148 (3.76) |
Notes:
1) Dimensions are
in inches.
2) Metric equivalents
are in parentheses and are given for general information only.
3) These capacitors
are not intended to be mounted by their leads.
4) The case insulation
shall extend 0.015 (0.38 mm) minimum beyond each end. However, when
a
shrink-fitted insulation is used, it shall lap over the ends of the capacitor
body.
5) Lead length may
be a minimum of 1 inch for use in tape and reel automatic insertion equipment,
when specified.
