MIL-DTL-55302 Printed Circuit Connectors -65°C to +125°C   Part Number Ordering Information:   Example of P/N:       M55302/58LA14Y15,         where

M55302	/58	L	A	14	Y	15
Military Specification Number	Detail Specification	Socket Contact Type (Omit for Pin Contacts)	Terminal Type	Number of Contacts	Mounting Hardware Type	Optional Polarization Code  (for Hardware Style "Y" ONLY)

  Click Here for Mating Information

Part  Number	Type Description	Terminal Type	No. of Contacts	Mounting Hardware Options
0.100 Inch Spacing Between Contacts
M55302/55XXXXX	Plug, Socket Contacts, Straight	See Table 2	10, 14, 20, 34, 26, 30, 36, 40, 44, 50, 54, 56, 60, 66, 70	L, M, S, H
M55302/56XXXX	Receptacle, Pin Contacts	See Table 2	"	Jackset
M55302/57XXXX	Plug, Pin Contacts, Right Angle	See Table 1	"	X, Y, S, H
M55302/58XXXXX	Receptacle, Socket Contacts	See Table 2	"	X, Y, F, S, H
M55302/61XXXX	Plug, Pin contacts, Right Angle	See Table 1	"	Jackset
M55302/62XXXXX	Receptacle, Socket Contacts	See Table 2	"	L, M, S, H
M55302/63XXXX	Plug, Pin Contacts, Straight	See Table 2	"	L, M, S, F, H, X, Y
M55302/64XXXXX	Receptacle, Socket Contacts	See Table 2	"	F, X, Y
M55302/65XXXXX	Receptacle, Socket Contacts	Crimp Removable	"	X, Y, F, S, H
M55302/66XXXXX	Receptacle, Socket Contacts	Crimp Removable	"	L, M, S, F, H
M55302/59XXXX	Plug, Pin Contacts, Right Angle	See Table 1	90, 100, 120	X, Y, F, S, H
M55302/60XXXXX	Receptacle, Socket Contacts	See Table 2	90, 100, 120	X, Y, F, S, H
M55302/138XXXXX	Plug, Pin Contacts, Right Angle	See Table 1	160	X, Y, F, S, H
M55302/139XXXXX	Receptacle, Socket Contacts	See Slash Sheet	160	X, Y, F, S, H
0.075 Inch Spacing Between Contacts
M55302/190LXXXX	Receptacle, Socket Contacts	See Table 3	100	X, Y, F, S, N, L, M
M55302/191XXXXX	Plug, Pin Contacts, Right Angle	See Table 1	100	X, Y, F, S, N, L, M
M55302/192LXXXX	Receptacle, Socket Contacts	See Table 3	122, 152	X, Y, F, S, N, L, M
M55302/193XXXXX	Plug, Pin Contacts, Right Angle	See Table 1	122, 152	X, Y, F, S, N, L, M



Socket Contact Type Code	Description
-	Normal Insertion Force (Not Available for /190 or /192)
L	Low Insertion Force


Table 1:  Contact Termination Options for M55302/57, /59, /61, /138, /191, /193

Terminal Type Code	Description
A	.109L Dip Terminal
B	.140L Dip Terminal
C	.172L Dip Terminal


Table 2:  Contact Termination Options for M55302/55, /56, /58, /60, /62, /63, /64

Terminal Type Code	Description
A	Solder Cup
B	.140L Dip Terminal
C	.172L Dip Terminal
F	.100 Flex Circuit Terminal (Not Applicable to /60, /63)


Table 3:  Contact Termination Options for M55302/190, /192

Terminal Type Code	Description
A	Solder Cup
B	.109L Dip Terminal
C	.140L Dip Terminal
D	.172L Dip Terminal
E	.093 Flex Circuit Terminal



Mounting Hardware Option Code	Description
L	Long Slotted Turning Jackscrew (.700)
M	Medium Slotted Turning Jackscrew (.500)
S	Short Slotted Turning Jackscrew (.200); See Application Note 7
F	Fixed Jackscrew
H	Short Hex Turning Jackscrew (.200); See Application Note 7
X	Full Round Guidepins
Y	D Shaped Guidepins



Mating Information

Plug Detail Specification	Mating Receptacle Detail Specification
/55	/56
/57, /61, /63	/58, /62, /64, /65, /66
/138	/139
/191	/190
/193	/192

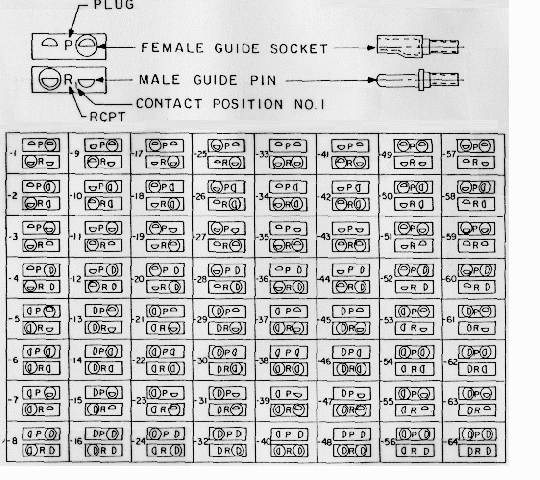

  Connector Polarization Code with D Shaped Guide Pins and Sockets for Hardware Style "Y"
