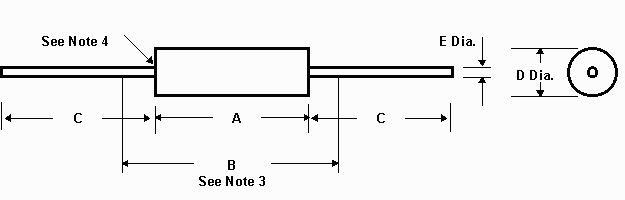

Physical
Dimensions Table
|
Resistor
Style
|
A
|
B (max)
|
C
|
D
|
E
|
|
RLR05
|
0.150±0.020
|
0.187
|
1.250±0.266
|
0.066±0.008
|
0.016±0.002
|
|
RLR07
|
0.250+0.031,
-0.046
|
0.300
|
1.500±0.125
|
0.090±0.008
|
0.025±0.002
|
|
RLR20
|
0.375+0.041,
-0.115
|
0.450
|
1.500±0.125
|
0.138+0.023,
-0.040
|
0.032±0.002
|
|
RLR32
|
0.562+0.031,
-0.042
|
0.625
|
1.500±0.125
|
0.190±0.015
|
0.040+0.002,
-0.009
|
NOTES:
1. Dimensions are
in inches.
2. Metric equivalents
are given for general information only.
3. The maximum length
is "clean lead" to "clean lead".
4. The end of the
body shall be the point at which the body diameter equals the nearest drill
size larger than 250% of the nominal lead diameter.
5. Lead length for
new design and tape and reel packaging shall be 1.00" + 0.625", -0.0".
6. Lead concentric
tolerance is to be measured at the point of lead egress from the resistor
body.
