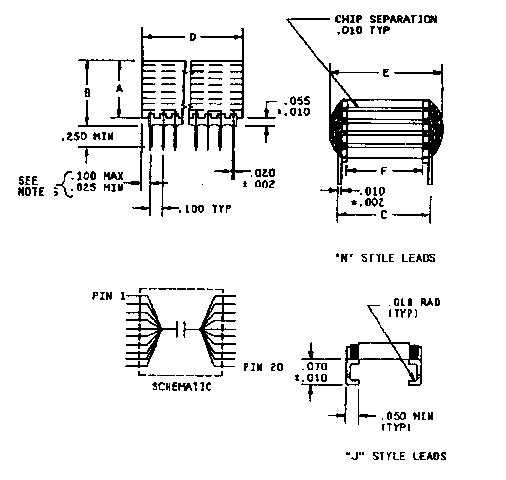

Physical Dimensions Table

Case Code	A (Max) See Note 4	B (Max) See Note 4	C ±0.025	D (Min)	D (Max)	E (Max)	F (Min) See Note 7	Number of Pins per Side
1	0.650	0.715	0.450	1.950	2.075	0.500	0.180	20
2	0.650	0.715	0.800	1.450	1.535	0.870	0.530	15
3	0.650	0.715	0.450	0.950	1.075	0.500	0.180	10
4	0.650	0.715	0.400	0.350	0.425	0.440	0.180	4
5	0.650	0.715	0.250	0.224	0.275	0.300	0.080	3
6	0.650	0.715	1.250	1.950	2.075	1.350	0.980	20

Notes:
1) Dimensions are in inches.
2) Metric equivalents are given for general information only.
3) Unless otherwise specified, tolerances are ±0.010 inches.
4) Dimensions are maximum stack (see detailed part listings tables for specific part dimensions).
5) "N" straight leads; "J" leads formed in.
6) For case code 5, dimensions shall be 0.100 inches maximum, 0.012 inches minimum.
7) Minimum uncovered band width.
